Autoencoder Pytorch
Published:
Introduction to Autoencoder
Library
from collections import defaultdict
import copy
import random
import os
import shutil
from urllib.request import urlretrieve
import numpy as np
import albumentations as A
from albumentations.pytorch import ToTensorV2
import cv2
import matplotlib.pyplot as plt
from tqdm.notebook import tqdm
import torch
import torch.backends.cudnn as cudnn
import torch.nn as nn
import torch.nn.functional as F
import torch.optim
from torch.utils.data import Dataset, DataLoader
# from torchvision.transforms.autoaugment import InterpolationMode
import torchvision.models as models
from tqdm import tqdm
from multiprocessing import Pool
cudnn.benchmark = True
from torchsummary import summary
import pickle
import torch.optim as optim
import albumentations as A
from albumentations.pytorch import ToTensorV2
import torchvision
import warnings
from PIL import Image
warnings.filterwarnings('ignore')
Config
LEANRING_RATE = 0.001
input_size = (28, 28)
up_scale_ratio = 3
target_size = (28 * up_scale_ratio, 28 * up_scale_ratio)
batch_size = 128
#device
device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
epochs = 10
#data path
train_path = './data/train/'
test_path = './data/test1/'
#fix seed
SEED = 42
random.seed(SEED)
np.random.seed(SEED)
torch.manual_seed(SEED)
torch.cuda.manual_seed(SEED)
torch.backends.cudnn.deterministic = True
Data Preporcessing
#plot image
def plot_images(images):
n_images = len(images)
rows = int(np.sqrt(n_images))
cols = int(np.sqrt(n_images))
fig = plt.figure(figsize=(20, 15))
for i in range(rows*cols):
img = cv2.imread(images[i])
img = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)
ax = fig.add_subplot(rows, cols, i+1)
ax.set_title(f"Size of img: {img.shape}")
ax.imshow(img, cmap='bone')
ax.axis('off')
#get image path
train_images_filepaths = [train_path + j for j in os.listdir(train_path)]
#correct image path
train_images_filepaths = [i for i in train_images_filepaths if cv2.imread(i) is not None]
test_images_filepaths = [test_path + j for j in os.listdir(test_path)]
test_images_filepaths = [i for i in test_images_filepaths if cv2.imread(i) is not None]
print("Number of training images: ", len(train_images_filepaths))
print("Number of testing images: ",len(test_images_filepaths))
#sample data
sample_plot = train_images_filepaths[:9]
Number of training images: 13270
Number of testing images: 1826

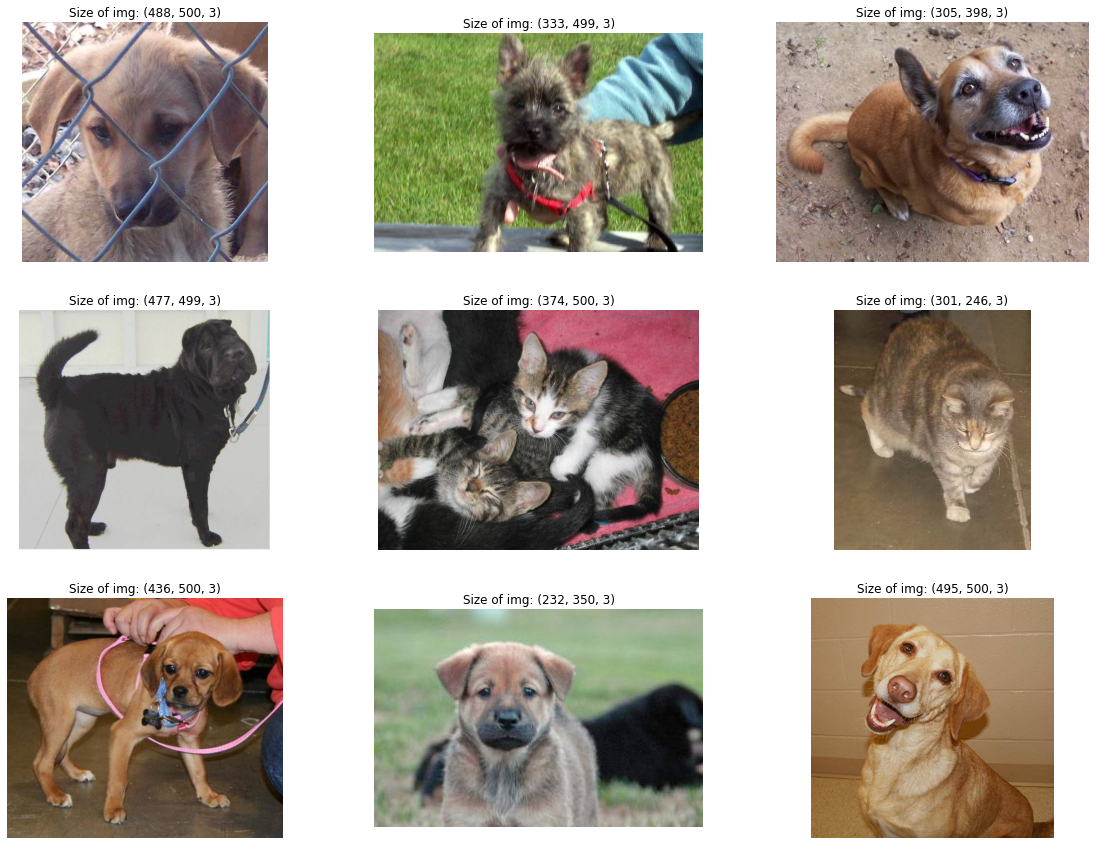

#plot sample image
plot_images(sample_plot)
Datasets
#dataset
class ResolutionDataset(Dataset):
def __init__(self, images_filepaths, transform=None, target_transform=None):
self.images_filepaths = images_filepaths
# self.target_filepaths = target_filepaths
self.transform = transform
self.target_transform = target_transform
def __len__(self):
return len(self.images_filepaths)
def __getitem__(self, idx):
image_filepath = self.images_filepaths[idx]
image = Image.open(image_filepath)
target = Image.open(image_filepath)
if self.transform is not None:
image = self.transform(image)
# target images
if self.target_transform is not None:
target = self.target_transform(target)
return image, target
#data augmentation
train_transform = torchvision.transforms.Compose([
torchvision.transforms.Resize((input_size[0],input_size[1])),
torchvision.transforms.ToTensor()])
val_transform = torchvision.transforms.Compose([
torchvision.transforms.Resize((input_size[0],input_size[1])),
torchvision.transforms.ToTensor()])
target_transform = torchvision.transforms.Compose([
torchvision.transforms.Resize((target_size[0],target_size[1])),
torchvision.transforms.ToTensor()])
#dataset
train_size = 0.9
train_idx = len(train_images_filepaths) * train_size
train_img_input, val_img_input = train_images_filepaths[:int(train_idx)], train_images_filepaths[int(train_idx):]
#create dataset
train_dataset = ResolutionDataset(train_img_input, train_transform, target_transform)
valid_dataset = ResolutionDataset(val_img_input, train_transform, target_transform)
test_dataset = ResolutionDataset(test_images_filepaths,train_transform, target_transform)
#dataloader
train_dataloader = DataLoader(train_dataset, batch_size=batch_size, shuffle=True)
valid_dataloader = DataLoader(valid_dataset, batch_size=batch_size, shuffle=False)
test_dataloader = DataLoader(test_dataset, batch_size=batch_size, shuffle=False)
Model
# Define Convolutional AutoEncoder Network
class AutoEncoder(nn.Module):
def __init__(self):
super(AutoEncoder, self).__init__()
#encoder module
self.encoder = torch.nn.Sequential(
nn.Upsample(scale_factor=up_scale_ratio, mode='nearest'),
nn.Conv2d(3, 64, 3, stride=1, padding=1),
nn.ReLU(True),
nn.MaxPool2d(2, stride=1),
nn.Conv2d(64, 16, 3, stride=1, padding=1),
nn.ReLU(True),
nn.MaxPool2d(2, stride=1)
)
#decoder module
self.decoder = torch.nn.Sequential(
nn.Upsample(scale_factor=1, mode='nearest'),
nn.Conv2d(16, 64, 3, stride=1, padding=1),
nn.ReLU(True),
nn.Upsample(scale_factor=1, mode='nearest'),
nn.Conv2d(64, 3, 3, stride=1, padding=2),
nn.Sigmoid()
)
def forward(self, x):
coded = self.encoder(x)
decoded = self.decoder(coded)
return decoded
model = AutoEncoder().to(device)
print(model)
AutoEncoder(
(encoder): Sequential(
(0): Upsample(scale_factor=3.0, mode=nearest)
(1): Conv2d(3, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(2): ReLU(inplace=True)
(3): MaxPool2d(kernel_size=2, stride=1, padding=0, dilation=1, ceil_mode=False)
(4): Conv2d(64, 16, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(5): ReLU(inplace=True)
(6): MaxPool2d(kernel_size=2, stride=1, padding=0, dilation=1, ceil_mode=False)
)
(decoder): Sequential(
(0): Upsample(scale_factor=1.0, mode=nearest)
(1): Conv2d(16, 64, kernel_size=(3, 3), stride=(1, 1), padding=(1, 1))
(2): ReLU(inplace=True)
(3): Upsample(scale_factor=1.0, mode=nearest)
(4): Conv2d(64, 3, kernel_size=(3, 3), stride=(1, 1), padding=(2, 2))
(5): Sigmoid()
)
)
summary(model, (3, 28, 28))
----------------------------------------------------------------
Layer (type) Output Shape Param #
================================================================
Upsample-1 [-1, 3, 84, 84] 0
Conv2d-2 [-1, 64, 84, 84] 1,792
ReLU-3 [-1, 64, 84, 84] 0
MaxPool2d-4 [-1, 64, 83, 83] 0
Conv2d-5 [-1, 16, 83, 83] 9,232
ReLU-6 [-1, 16, 83, 83] 0
MaxPool2d-7 [-1, 16, 82, 82] 0
Upsample-8 [-1, 16, 82, 82] 0
Conv2d-9 [-1, 64, 82, 82] 9,280
ReLU-10 [-1, 64, 82, 82] 0
Upsample-11 [-1, 64, 82, 82] 0
Conv2d-12 [-1, 3, 84, 84] 1,731
Sigmoid-13 [-1, 3, 84, 84] 0
================================================================
Total params: 22,035
Trainable params: 22,035
Non-trainable params: 0
----------------------------------------------------------------
Input size (MB): 0.01
Forward/backward pass size (MB): 23.91
Params size (MB): 0.08
Estimated Total Size (MB): 24.01
----------------------------------------------------------------
Loss function and Optimization
criterion = nn.MSELoss()
optimizer = optim.AdamW(model.parameters(), lr= LEANRING_RATE)
Training Model
def train_autoencoder(model,train_dataloader, test_dataloader, epochs):
# set to training mode
model.train()
train_loss_avg = []
valid_loss_avg = []
best_loss = 1000
print('====================== Start Training Autoencoder =====================')
for epoch in range(epochs):
train_loss_avg.append(0)
num_batches = 0
for image_batch, target_batch in tqdm(train_dataloader):
image_batch = image_batch.to(device)
target_batch = target_batch.to(device)
# autoencoder reconstruction
image_batch_recon = model(image_batch)
# reconstruction error
loss = criterion(image_batch_recon, target_batch)
# backpropagation
optimizer.zero_grad()
loss.backward()
# one step of the optmizer (using the gradients from backpropagation)
optimizer.step()
train_loss_avg[-1] += loss.item()
num_batches += 1
train_loss_avg[-1] /= num_batches
print('Epoch [%d / %d] Training Loss: %f' % (epoch+1, epochs, train_loss_avg[-1]))
# set to evaluation mode
model.eval()
test_loss_avg, num_batches = 0, 0
valid_loss_avg.append(0)
for image_batch, target_batch in tqdm(test_dataloader):
with torch.no_grad():
image_batch = image_batch.to(device)
target_batch = target_batch.to(device)
# autoencoder reconstruction
image_batch_recon = model(image_batch)
# reconstruction error
loss = criterion(image_batch_recon, target_batch)
test_loss_avg += loss.item()
num_batches += 1
test_loss_avg /= num_batches
valid_loss_avg[-1] = test_loss_avg
if test_loss_avg < best_loss:
best_loss = test_loss_avg
torch.save(model.state_dict(), "conv_autoencoder_best.pt")
print('Epoch [%d / %d] Valid Loss: %f' % (epoch+1, epochs, test_loss_avg))
return model, train_loss_avg, valid_loss_avg
model, train_loss, valid_loss = train_autoencoder(model,train_dataloader, test_dataloader, epochs)
====================== Start Training Autoencoder =====================
100%|██████████| 94/94 [00:59<00:00, 1.57it/s]
Epoch [1 / 10] Training Loss: 0.014334
100%|██████████| 15/15 [00:07<00:00, 1.96it/s]
Epoch [1 / 10] Valid Loss: 0.005057
100%|██████████| 94/94 [00:58<00:00, 1.61it/s]
Epoch [2 / 10] Training Loss: 0.004550
100%|██████████| 15/15 [00:07<00:00, 1.99it/s]
Epoch [2 / 10] Valid Loss: 0.003430
100%|██████████| 94/94 [00:58<00:00, 1.61it/s]
Epoch [3 / 10] Training Loss: 0.003479
100%|██████████| 15/15 [00:07<00:00, 1.98it/s]
Epoch [3 / 10] Valid Loss: 0.003045
100%|██████████| 94/94 [00:58<00:00, 1.61it/s]
Epoch [4 / 10] Training Loss: 0.003192
100%|██████████| 15/15 [00:07<00:00, 1.98it/s]
Epoch [4 / 10] Valid Loss: 0.003064
100%|██████████| 94/94 [00:58<00:00, 1.62it/s]
Epoch [5 / 10] Training Loss: 0.003098
100%|██████████| 15/15 [00:07<00:00, 1.97it/s]
Epoch [5 / 10] Valid Loss: 0.002738
100%|██████████| 94/94 [00:58<00:00, 1.60it/s]
Epoch [6 / 10] Training Loss: 0.003012
100%|██████████| 15/15 [00:07<00:00, 1.98it/s]
Epoch [6 / 10] Valid Loss: 0.002678
100%|██████████| 94/94 [00:58<00:00, 1.61it/s]
Epoch [7 / 10] Training Loss: 0.002970
100%|██████████| 15/15 [00:07<00:00, 1.98it/s]
Epoch [7 / 10] Valid Loss: 0.002603
100%|██████████| 94/94 [00:58<00:00, 1.61it/s]
Epoch [8 / 10] Training Loss: 0.002827
100%|██████████| 15/15 [00:07<00:00, 2.00it/s]
Epoch [8 / 10] Valid Loss: 0.002582
100%|██████████| 94/94 [00:58<00:00, 1.61it/s]
Epoch [9 / 10] Training Loss: 0.002812
100%|██████████| 15/15 [00:07<00:00, 2.00it/s]
Epoch [9 / 10] Valid Loss: 0.002512
100%|██████████| 94/94 [00:58<00:00, 1.61it/s]
Epoch [10 / 10] Training Loss: 0.002783
100%|██████████| 15/15 [00:07<00:00, 1.98it/s]
Epoch [10 / 10] Valid Loss: 0.002834

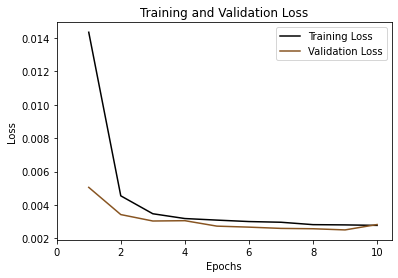

#plot train plot and valid loss
plt.plot(range(1,epochs+1), train_loss, label='Training Loss', color="#000")
plt.plot(range(1,epochs+1), valid_loss, label='Validation Loss', color="#852")
# Add in a title and axes labels
plt.title('Training and Validation Loss')
plt.xlabel('Epochs')
plt.ylabel('Loss')
# Set the tick locations
plt.xticks(range(0, epochs+1, 2))
# Display the plot
plt.legend(loc='best')
plt.show()
Testing Model
def convert_img(img):
"""Imshow for Tensor."""
try:
img = img.cpu().numpy().transpose((1, 2, 0))
except:
img = img.cpu().detach().numpy().transpose((1, 2, 0))
return img
#load best model
model.load_state_dict(torch.load('conv_autoencoder_best.pt'))
#save reconstruction images
if not os.path.exists('output_autoencoder'):
os.mkdir('output_autoencoder')

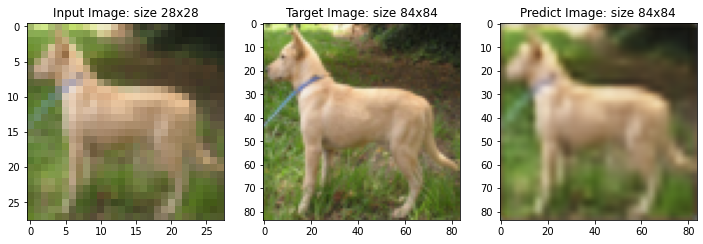

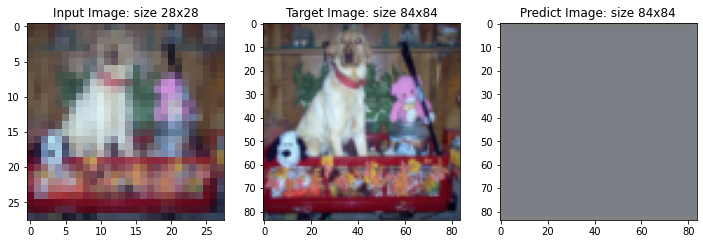

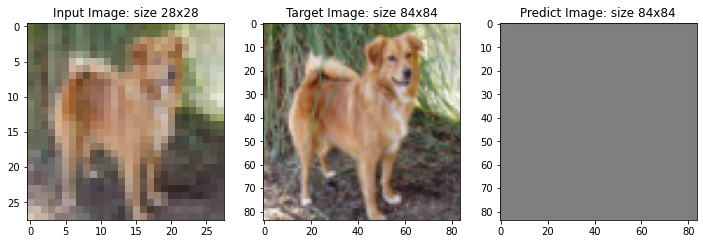

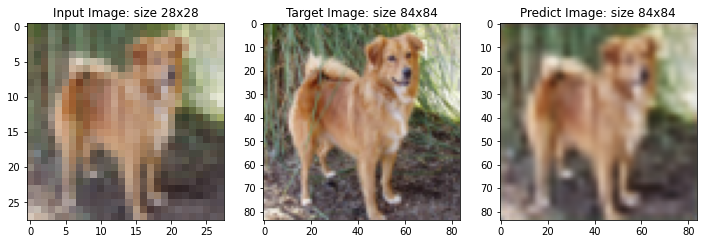

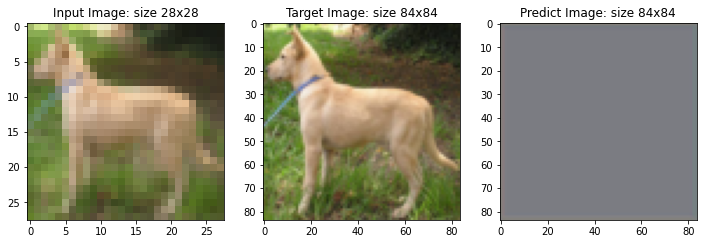

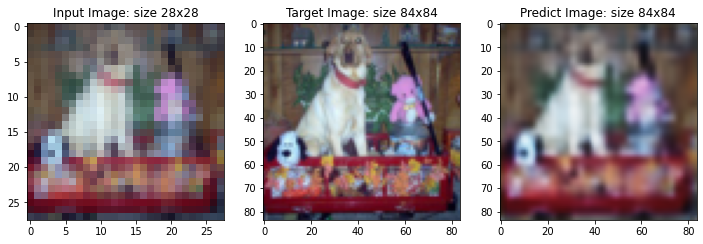

#plot reconstruction images
list_idx = [7, 19 , 24]
for i in range(len(list_idx)):
ix = list_idx[i]
img, target = valid_dataset[ix]
img_predict = model(img[None].to(device))[0]
img = convert_img(img)
target = convert_img(target)
img_predict = convert_img(img_predict)
#save output
print(img_predict.shape)
Image.fromarray(np.uint8(img_predict*255)).convert('RGB').save(f"output_autoencoder/reconstruction_img_{i}.png")
fig, ax = plt.subplots(1, 3, figsize=(12,12))
ax[0].imshow(img)
ax[0].set_title(f'Input Image: size {img.shape[0]}x{img.shape[0]}')
ax[1].imshow(target)
ax[1].set_title(f'Target Image: size {target.shape[0]}x{target.shape[0]}')
ax[2].imshow(img_predict)
ax[2].set_title(f'Predict Image: size {img_predict.shape[0]}x{img_predict.shape[0]}')
plt.show()
(84, 84, 3)
(84, 84, 3)
(84, 84, 3)
Subjective grading of the quality of output
With simple Autoencoder moedl (22,035) parameters model can generate very good image at scale (84x84) compare to input image (28x28). If we use more complex Autoencoder model such as using pretrained CNN model as an encoder part, we can improve generating images results
Try Another Model: Variational Autoencoder (VAE)
# VAE design model
class VAE(nn.Module):
def __init__(self, z_dim=64, input_c=3):
super(VAE, self).__init__()
self.z_dim = z_dim
#encoder module
self.encoder = torch.nn.Sequential(
nn.Upsample(scale_factor=up_scale_ratio, mode='nearest'),
nn.Conv2d(3, 64, 3, stride=2, padding=1),
nn.ReLU(True),
nn.MaxPool2d(2, stride=1),
nn.Conv2d(64, 16, 3, stride=4, padding=1),
nn.ReLU(True),
nn.Conv2d(16, 16, 3, stride=4, padding=1),
nn.ReLU(True),
nn.MaxPool2d(2, stride=1)
)
self.mu_fc = nn.Linear(z_dim, z_dim)
self.logvar_fc = nn.Linear(z_dim, z_dim)
#decoder module
self.decoder = torch.nn.Sequential(
nn.Upsample(scale_factor=84, mode='nearest'),
nn.Conv2d(64, 16, 3, stride=1),
nn.ReLU(True),
nn.Conv2d(16, 64, 3, stride=1, padding=1),
nn.ReLU(True),
nn.Upsample(scale_factor=1, mode='nearest'),
nn.Conv2d(64, 3, 3, stride=1, padding=2),
nn.Sigmoid()
)
def initialize(self):
for m in self.modules():
if isinstance(m, nn.Conv2d):
nn.init.kaiming_normal_(m.weight)
if m.bias is not None:
nn.init.constant_(m.bias, 0)
elif isinstance(m, nn.BatchNorm2d) or isinstance(m, nn.LayerNorm):
nn.init.constant_(m.weight, 1)
nn.init.constant_(m.bias, 0)
elif isinstance(m, nn.Linear):
nn.init.xavier_uniform_(m.weight)
nn.init.constant_(m.bias, 0)
def reparameterize(self, mu, logvar):
std = torch.exp(0.5*logvar)
eps = torch.randn_like(std)
return mu + eps*std
def forward(self, x):
h = self.encoder(x)
h = torch.flatten(h, start_dim=1)
mu = self.mu_fc(h) # mean vector
logvar = self.logvar_fc(h) # logarithm of variance-covariance matrix
z = self.reparameterize(mu, logvar) # latent variable
x_hat = self.decoder(z.view(z.size(0), -1, 1, 1))
self.mu = mu.squeeze()
self.logvar = logvar.squeeze()
return x_hat
model2 = VAE().to(device)
summary(model2, (3, 28, 28))
----------------------------------------------------------------
Layer (type) Output Shape Param #
================================================================
Upsample-1 [-1, 3, 84, 84] 0
Conv2d-2 [-1, 64, 42, 42] 1,792
ReLU-3 [-1, 64, 42, 42] 0
MaxPool2d-4 [-1, 64, 41, 41] 0
Conv2d-5 [-1, 16, 11, 11] 9,232
ReLU-6 [-1, 16, 11, 11] 0
Conv2d-7 [-1, 16, 3, 3] 2,320
ReLU-8 [-1, 16, 3, 3] 0
MaxPool2d-9 [-1, 16, 2, 2] 0
Linear-10 [-1, 64] 4,160
Linear-11 [-1, 64] 4,160
Upsample-12 [-1, 64, 84, 84] 0
Conv2d-13 [-1, 16, 82, 82] 9,232
ReLU-14 [-1, 16, 82, 82] 0
Conv2d-15 [-1, 64, 82, 82] 9,280
ReLU-16 [-1, 64, 82, 82] 0
Upsample-17 [-1, 64, 82, 82] 0
Conv2d-18 [-1, 3, 84, 84] 1,731
Sigmoid-19 [-1, 3, 84, 84] 0
================================================================
Total params: 41,907
Trainable params: 41,907
Non-trainable params: 0
----------------------------------------------------------------
Input size (MB): 0.01
Forward/backward pass size (MB): 18.00
Params size (MB): 0.16
Estimated Total Size (MB): 18.17
----------------------------------------------------------------
def train_vae(model,train_dataloader, test_dataloader, epochs):
# set to training mode
model.train()
train_loss_avg = []
valid_loss_avg = []
best_loss = 1000
print('====================== Start Training Variational Autoencoder =====================')
for epoch in range(epochs):
train_loss_avg.append(0)
num_batches = 0
for image_batch, target_batch in tqdm(train_dataloader):
image_batch = image_batch.to(device)
target_batch = target_batch.to(device)
# autoencoder reconstruction
image_batch_recon = model(image_batch)
# reconstruction error
loss = criterion(image_batch_recon, target_batch)
# backpropagation
optimizer.zero_grad()
loss.backward()
# one step of the optmizer (using the gradients from backpropagation)
optimizer.step()
train_loss_avg[-1] += loss.item()
num_batches += 1
train_loss_avg[-1] /= num_batches
print('Epoch [%d / %d] Training Loss: %f' % (epoch+1, epochs, train_loss_avg[-1]))
# set to evaluation mode
model.eval()
test_loss_avg, num_batches = 0, 0
valid_loss_avg.append(0)
for image_batch, target_batch in tqdm(test_dataloader):
with torch.no_grad():
image_batch = image_batch.to(device)
target_batch = target_batch.to(device)
# autoencoder reconstruction
image_batch_recon = model(image_batch)
# reconstruction error
loss = criterion(image_batch_recon, target_batch)
test_loss_avg += loss.item()
num_batches += 1
test_loss_avg /= num_batches
valid_loss_avg[-1] = test_loss_avg
if test_loss_avg < best_loss:
best_loss = test_loss_avg
torch.save(model.state_dict(), "VAE_best.pt")
print('Epoch [%d / %d] Valid Loss: %f' % (epoch+1, epochs, test_loss_avg))
return model, train_loss_avg, valid_loss_avg
criterion = nn.MSELoss()
optimizer = optim.AdamW(model.parameters(), lr= LEANRING_RATE)
model2, train_loss2, valid_loss2 = train_vae(model2,train_dataloader, test_dataloader, epochs)
====================== Start Training Variational Autoencoder =====================
100%|██████████| 94/94 [01:00<00:00, 1.56it/s]
Epoch [1 / 10] Training Loss: 0.062646
100%|██████████| 15/15 [00:07<00:00, 2.03it/s]
Epoch [1 / 10] Valid Loss: 0.064426
100%|██████████| 94/94 [01:00<00:00, 1.56it/s]
Epoch [2 / 10] Training Loss: 0.062700
100%|██████████| 15/15 [00:07<00:00, 2.02it/s]
Epoch [2 / 10] Valid Loss: 0.064400
100%|██████████| 94/94 [00:59<00:00, 1.57it/s]
Epoch [3 / 10] Training Loss: 0.062614
100%|██████████| 15/15 [00:07<00:00, 2.02it/s]
Epoch [3 / 10] Valid Loss: 0.064505
100%|██████████| 94/94 [01:00<00:00, 1.56it/s]
Epoch [4 / 10] Training Loss: 0.062682
100%|██████████| 15/15 [00:07<00:00, 2.00it/s]
Epoch [4 / 10] Valid Loss: 0.064457
100%|██████████| 94/94 [01:00<00:00, 1.55it/s]
Epoch [5 / 10] Training Loss: 0.062549
100%|██████████| 15/15 [00:07<00:00, 2.00it/s]
Epoch [5 / 10] Valid Loss: 0.064379
100%|██████████| 94/94 [01:00<00:00, 1.55it/s]
Epoch [6 / 10] Training Loss: 0.062671
100%|██████████| 15/15 [00:07<00:00, 2.02it/s]
Epoch [6 / 10] Valid Loss: 0.064328
100%|██████████| 94/94 [01:00<00:00, 1.55it/s]
Epoch [7 / 10] Training Loss: 0.062634
100%|██████████| 15/15 [00:07<00:00, 2.00it/s]
Epoch [7 / 10] Valid Loss: 0.064389
100%|██████████| 94/94 [01:00<00:00, 1.55it/s]
Epoch [8 / 10] Training Loss: 0.062643
100%|██████████| 15/15 [00:07<00:00, 2.00it/s]
Epoch [8 / 10] Valid Loss: 0.064393
100%|██████████| 94/94 [01:00<00:00, 1.56it/s]
Epoch [9 / 10] Training Loss: 0.062568
100%|██████████| 15/15 [00:07<00:00, 2.00it/s]
Epoch [9 / 10] Valid Loss: 0.064448
100%|██████████| 94/94 [01:00<00:00, 1.55it/s]
Epoch [10 / 10] Training Loss: 0.062619
100%|██████████| 15/15 [00:07<00:00, 2.01it/s]
Epoch [10 / 10] Valid Loss: 0.064398
# Testing with VAE model
#load best model
model2.load_state_dict(torch.load('VAE_best.pt'))
#save reconstruction images
if not os.path.exists('output_VAE'):
os.mkdir('output_VAE')
#plot reconstruction images
list_idx = [7, 19 , 24]
for i in range(len(list_idx)):
ix = list_idx[i]
img, target = valid_dataset[ix]
img_predict = model2(img[None].to(device))[0]
img = convert_img(img)
target = convert_img(target)
img_predict = convert_img(img_predict)
#save output
Image.fromarray(np.uint8(img_predict*255)).convert('RGB').save(f"output_VAE/reconstruction_img_{i}.png")
fig, ax = plt.subplots(1, 3, figsize=(12,12))
ax[0].imshow(img)
ax[0].set_title(f'Input Image: size {img.shape[0]}x{img.shape[0]}')
ax[1].imshow(target)
ax[1].set_title(f'Target Image: size {target.shape[0]}x{target.shape[0]}')
ax[2].imshow(img_predict)
ax[2].set_title(f'Predict Image: size {img_predict.shape[0]}x{img_predict.shape[0]}')
plt.show()
Conclusion
Variational Autoencoder model with more complex architecture but the generating results are not good as Convolution Autoencoder model.
